Q3/967F type thermal ball valve
【Product use】
Urban gas: gas output pipelines, main lines and supply pipelines of various branch lines, etc.
Central heating: output pipelines, main lines, and branch lines of large-scale heating equipment.
Heat exchanger: the pipeline and each circuit are opened and closed.
Steel plants: various fluid pipelines, exhaust gas emission pipelines, gas and heat supply pipelines, and fuel supply pipelines.
Various industrial equipment: various heat treatment pipelines, various industrial gas and thermal pipelines.
【Product features】
1.The fully welded valve body structure avoids leakage.
2.30 years of service life, maintenance-free, to achieve the same life as the pipeline.
3.Special technical valve seats with multiple sealing structures ensure zero leakage.
4.Direct-buried valves can be provided to save well-making costs, reduce early project investment, and ensure the safety of operation and maintenance personnel.
5.Pressurized prefabricated thermal insulation valves can be provided to effectively avoid the lack of heat energy caused by poor on-site thermal insulation conditions.
【Technical specifications】
| Design basis | GB | |
| Design standard | GB/T 12237 | |
| Structure length | Connecting flange | GB/T 12221 |
Welding | ||
Connecting flange | GB/T 9113 JB/T 79 | |
Butt welding end | GB/T 12224 | |
Test and inspection | GB/T 13927 JB/T 9092 | |
【Product performance specification】
Valve specifications | Applicable temperature（℃） | Applicable media | Material | Connection method | Operation method |
DN15~1600 PN16~PN25 | -46～200°C | Hot water, cold water, etc. | WCB,A105 | Welding, flange | Handles, handwheels, gearboxes, electric, pneumatic, etc. |

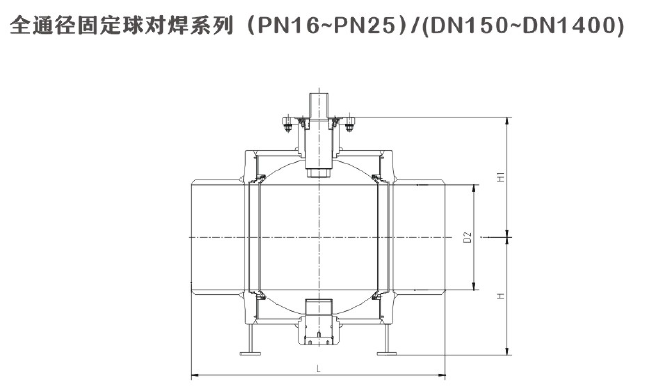

DN | PN | D2 | L | H | H1 |
100 | 16/25 | 150 | 450 | 200 | 200 |
200 | 16/25 | 201 | 650 | 225 | 251 |
250 | 16/25 | 252 | 650 | 293 | 299 |
300 | 16/25 | 303 | 750 | 339 | 349 |
350 | 16/25 | 334 | 850 | 370 | 388 |
400 | 16/25 | 385 | 950 | 410 | 435 |
450 | 16/25 | 436 | 1050 | 492 | 500 |
500 | 16/25 | 487 | 1150 | 562 | 567 |
600 | 16/25 | 589 | 1350 | 640 | 663 |
700 | 16/25 | 684 | 1550 | 650 | 720 |
800 | 16/25 | 779 | 1750 | 775 | 796 |
900 | 16/25 | 874 | 1950 | 896 | 905 |
1000 | 16/25 | 976 | 2150 | 970 | 975 |
1200 | 16/25 | 1166 | 2350 | 1135 | 1133 |
1400 | 16/25 | 1366 | 2850 | 1345 | 1310 |
DN | PN | D | D2 | L | H | H1 |
200*150 | 16/25 | 201 | 150 | 550 | 200 | 100 |
250*200 | 16/25 | 252 | 201 | 650 | 225 | 251 |
300*250 | 16/25 | 303 | 353 | 750 | 293 | 299 |
350*300 | 16/25 | 334 | 303 | 850 | 419 | 349 |
400*350 | 16/25 | 385 | 334 | 950 | 370 | 388 |
450*400 | 16/25 | 436 | 385 | 1050 | 410 | 435 |
500*400 | 16/25 | 487 | 436 | 1150 | 492 | 500 |
600*500 | 16/25 | 589 | 487 | 1350 | 562 | 567 |
700*600 | 16/25 | 684 | 589 | 1550 | 640 | 663 |
800*700 | 16/25 | 779 | 684 | 1750 | 650 | 720 |
900*800 | 16/25 | 874 | 779 | 1950 | 775 | 796 |
1000*900 | 16/25 | 976 | 874 | 2150 | 896 | 905 |
1200*1000 | 16/25 | 1166 | 976 | 2350 | 970 | 975 |
1400*1200 | 16/25 | 1360 | 1166 | 2550 | 1135 | 1133 |
1600*1400 | 16/25 | 1550 | 1360 | 2750 | 1345 | 1310 |
