【Product description】
CS49H-16, S49H-16, CS49-16C, CS49H-25, CS49H-40 disc steam trap: flange connection, disc thermodynamic structure, seat sealing surface material is Cr13 stainless steel, nominal pressure PN16~PN40, valve body material is gray cast iron (CS49H-16, S49H-16), carbon steel (CS49H-16C, CS49H-25, CS49H-40) steam trap.The disc trap is used to automatically drain the steam pipeline and use the condensate in the heating equipment to ensure the smooth flow of the pipeline and improve the thermal efficiency.It is used in steam master pipes, branch pipes, soda separators and other occasions in steam pipe networks in petroleum, chemical, food, printing and dyeing, textiles, medicine and other industries, and can also be used in steam equipment such as drying rooms, ovens, and hot presses.
【Working principle】
The disc-type steam trap is based on the principle of Boer thermodynamics and uses the different thermodynamic characteristics of steam and condensate to cause changes in kinetic energy and potential energy and static and static pressure.The pressure difference between the upper and lower valve plates of the moving parts is changed, and the starting valve plates are opened and closed, so as to achieve the purpose of blocking steam and drainage.
【Product performance parameters】
Main performance parameters of CS49H-16, S49H-16, CS49-16C, CS49H-25, CS49H-40 disc trap |
Model number | PN | Working pressure/MPa | Applicable temperature/℃ | Applicable media |
CS49H-16、S49H-16 | 16 | 1.6 | ≤203 | Steam, condensate |
CS49H-16C | 16 | 1.6 | ≤203 |
CS49H-25 | 25 | 2.5 | ≤210 |
CS49H-40 | 40 | 4.0 | ≤247 |
【Product parts and materials】
CS49H-16, S49H-16, CS49-16C, CS49H-25, CS49H-40 disc trap parts and materials |
Model number | Material |
Valve body, valve cover | Valve seat, valve stem, filter |
CS49H-16、S49H-16 | Gray cast iron | Stainless steel |
CS49H-16C | Carbon cast steel | Stainless steel |
CS49H-25 | Carbon cast steel | Stainless steel |
CS49H-40 | Carbon cast steel | Stainless steel |
【Product shape and structure size】
The main shape and structure dimensions of CS49H-16, S49H-16, CS49-16C disc trap (mm) |
DN | L | H | D | D1 | D2 | b | z×Φd | Weight/kg |
15 | 150 | 70 | 95 | 56 | 54 | 16 | 4×Φ13.5 | 4 |
20 | 190 | 70 | 105 | 75 | 58 | 16 | 4×Φ13.5 | 4.2 |
25 | 200 | 70 | 115 | 85 | 68 | 16 | 4×Φ13.5 | 4.5 |
32 | 230 | — | 135 | 100 | 78 | 18 | 4×Φ17.5 | 6 |
40 | 230 | — | 145 | 110 | 85 | 18 | 4×Φ17.5 | 8 |
50 | 230 | — | 160 | 125 | 100 | 20 | 4×Φ17.5 | 9 |
65 | 270 | — | 185 | 145 | 122 | 20 | 4×Φ17.5 | 13.5 |
80 | 280 | — | 200 | 160 | 133 | 22 | 4×Φ17.5 | 17.5 |
100 | 300 | — | 215 | 180 | 155 | 24 | 4×Φ17.5 | 20 |
【Product shape and structure size】
The main shape and structure dimensions of CS49H-25 disc steam trap (mm) |
DN | L | D | D1 | H | z×Φd |
15 | 150 | 95 | 65 | 105 | 4×Φ14 |
20 | 150 | 105 | 75 | 105 | 4×Φ14 |
25 | 160 | 115 | 85 | 110 | 4×Φ14 |
32 | 230 | 135 | 100 | 115 | 4×Φ18 |
40 | 230 | 150 | 110 | 125 | 4×Φ18 |
50 | 230 | 165 | 125 | 135 | 4×Φ18 |
【Product shape and structure size】
The main shape and structure dimensions of CS49H-40 disc steam trap (mm) |
DN | L | D | D1 | D2 | D6 | z×Φd | Weight/kg |
15 | 150 | 95 | 65 | 46 | 40 | 4×Φ14 | 2.7 |
20 | 150 | 105 | 75 | 56 | 51 | 4×Φ14 | 3.2 |
25 | 160 | 115 | 85 | 65 | 58 | 4×Φ14 | 3.7 |
40 | 230 | 150 | 110 | 84 | 76 | 4×Φ18 | 8.5 |
50 | 230 | 165 | 125 | 99 | 88 | 4×Φ18 | 10.5 |

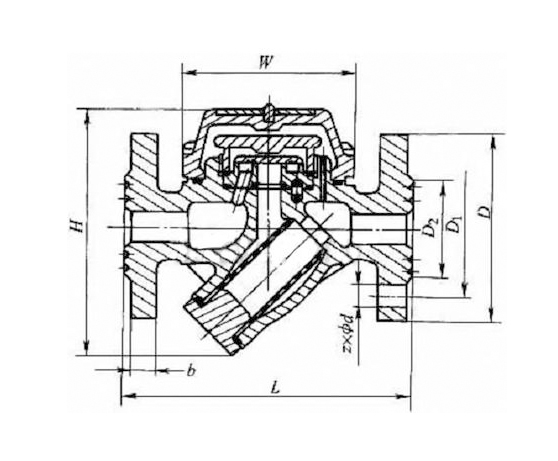

【Schematic diagram of product shape and structure size】
