H64Y type high pressure check valve for power station
【Product use】
H64Y type 1500(Lb)~2500(Lb) power station check valve is suitable for Class1500~2500Lb, operating temperature -29~570℃ petroleum, chemical, thermal power station and other working conditions of the pipeline.
H64Y-1500Lb main shape and connection size
Nominal diameter PNS(in) | Dimensions and connection dimensions | Weight | ||
d | L | H | ||
21/2 | 50 | 330 | 240 | 40 |
3 | 60 | 368 | 305 | 60 |
4 | 80 | 457 | 315 | 95 |
5 | 96 | 533 | 409 | 170 |
6 | 118 | 610 | 465 | 186 |
8 | 147 | 762 | 528 | 415 |
10 | 180 | 914 | 613 | 658 |
12 | 222 | 1041 | 680 | 1200 |
14 | 254 | 1118 | 745 | 1638 |
H64Y-2500Lb main shape and connection size
Nominal diameter PNS(in) | Dimensions and connection dimensions | Weight | ||
d | L | H | ||
3 | 54 | 368 | 297 | 44 |
4 | 70 | 457 | 385 | 110 |
5 | 86 | 533 | 410 | 130 |
6 | 104 | 610 | 455 | 192 |
8 | 130 | 762 | 557 | 466 |
10 | 162 | 914 | 615 | 730 |
12 | 210 | 1041 | 715 | 1120 |
14 | 234 | 1118 | 790 | 1495 |
16 | 264 | 1245 | 815 | 1950 |
18 | 304 | 1397 | 815 | 2400 |

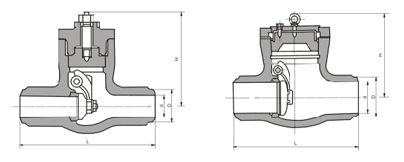

【Structure picture】
