Q11F型 一体式内螺纹球阀
【产品用途】
Q111F 型PN16~PN63 内螺纹球阀适用于PN1.0～4.0MPa，工作温度-29～180℃（密封圈为增强聚四氟乙烯）或-29～300℃（密封圈为对位聚苯）的各种管路上，用于截断或接通管路中的介质，选用不同的材质,可分别适用于水、蒸汽、油品、硝酸、醋酸等多种介质。
主要零件材料
适用介质 | 型号 | 阀体 | 球体、阀杆 | 手柄 | 密封圈 | 垫片、填料 |
水、蒸汽、油 | Q11F-16C、Q11F-25C | A105、45 | 1Cr18/1Cr18Ni9Ti | 不 | 聚四氟乙烯PTFE增强聚四氟乙烯VUILUK PTFE对位聚苯PPL | 聚四氟乙烯PTFE对位聚苯PPL |
硝酸类 | Q11F-16P、Q11F-25P | SS304/1Cr18Ni19Ti | SS304/1Cr18Ni9Ti | |||
醋酸类 | Q11F-16R、Q11F-25R | SS316/Cr18Ni12Mo2Ti | SS316/1Cr18Ni12Mo2Ti |
主要外形和连接尺寸
公称通径 | 管螺纹 | 尺寸（mm） | 重量WT（g） | |||||
d | L | W | H | E | D | D | ||
6 | 1/4″ | 8 | 60 | 110 | 56 | 11.5 | 30 | 320 |
10 | 3/8″ | 18 | 60 | 110 | 58 | 11.5 | 31 | 320 |
15 | 1/2″ | 10.5 | 60 | 110 | 58 | 14 | 32 | 350 |
20 | 3/4″ | 13 | 67.5 | 110 | 62 | 15 | 38 | 430 |
25 | 1″ | 17 | 73 | 110 | 68 | 15 | 45 | 570 |
32 | 1 1/4″ | 22 | 90 | 150 | 75 | 18 | 53.4 | 1000 |
40 | 1 1/2″ | 25 | 97.5 | 150 | 83 | 19 | 63 | 1550 |
50 | 2″ | 32 | 112 | 150 | 90 | 19 | 73 | 2170 |
65 | 2 1/2″ | 40 | 132 | 180 | 95 | 21 | 92 | 3625 |
80 | 3″ | 50 | 156 | 220 | 100 | 27 | 109 | 5800 |
100 | 4″ | 65 | 196 | 250 | 115 | 29 | 138 | 7200 |

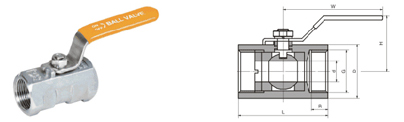

【结构图片】
